Concrete Pump Wear Plate DN200/230/260 Tungsten Carbide 15-20mm

Place of Origin : China

MOQ : 1

Price : $164-$198

Material : Tungsten carbide, Alloy

Type/Size : DN200/230/260

Dual carbide thickness : 15+5mm

Single carbide thickness : 15mm

Full carbide thickness : 20mm

Wear Plate weight (200) : 20.87 kgs

Wear Plate weight (230) : 22.5 kgs

Wear Plate weight (260) : 24.25 kgs

Cutting Rings weight (200) : 7.92 kgs

Cutting Rings weight (230) : 8.3 kgs

Cutting Rings weight (260) : 8.1 kgs

Carbide hardness : HRA ≥85

Electrode hardness : HRC ≥65

Cutting Ring types : Single Alloy, Twin Alloy, Full Alloy

MOQ : 1 piece

Contact Now

Product Description

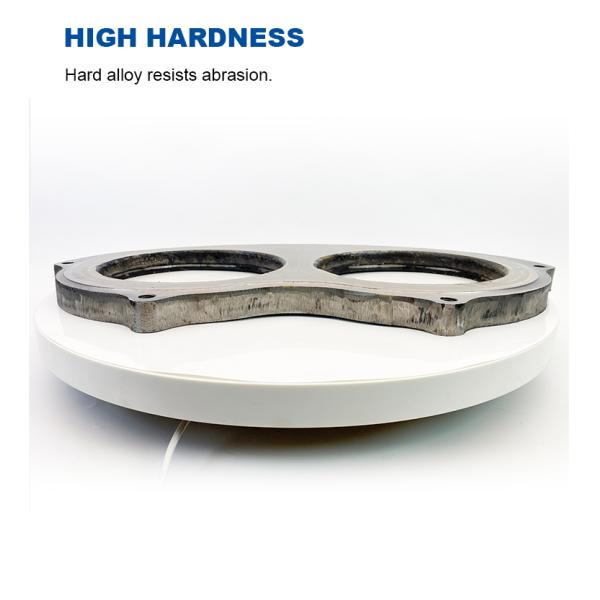

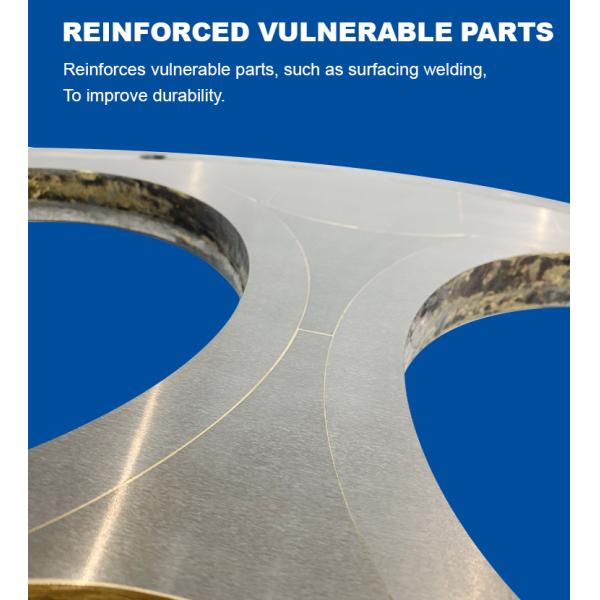

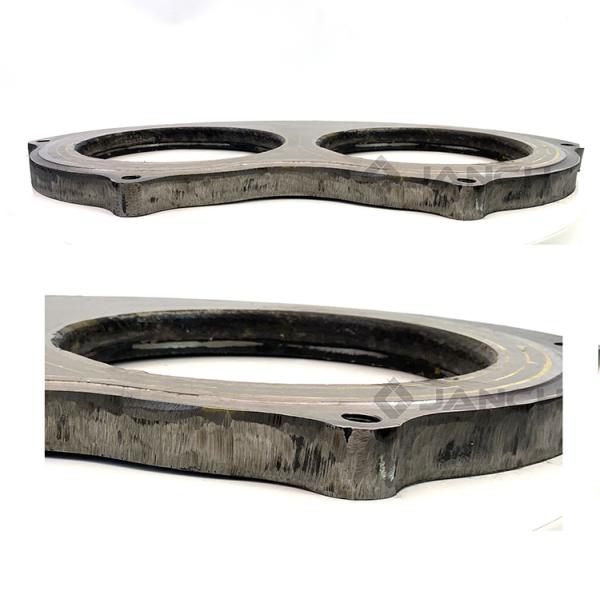

Concrete pump tungsten carbide spectacle wear plate

Dual carbide 15+5mm

Single carbide 15mm

full carbide 20mm for choices

Concrete Pump Wear Plate DN200/230/260 Tungsten Carbide 15-20mm

Desp	Item No.（Size）	Weight(kgs)	Material
Wear Plate	590653（200）	20.87	Carbide HRA：≥85 Electrode HRC：≥65
Wear Plate	500011（230）	22.5	Carbide HRA：≥85 Electrode HRC：≥65
Wear Plate	500007（260）	24.25	Carbide HRA：≥85 Electrode HRC：≥65
Cutting Rings	590654/590660(200)	7.92	Carbide HRA：≥85 Electrode HRC：≥65
Cutting Rings	500012/590129(230)	8.3	Carbide HRA：≥85 Electrode HRC：≥65
Cutting Rings	500008/590165(260)	8.1	Carbide HRA：≥85 Electrode HRC：≥65

How to increase service life of concrete pump spectacle wear plate and cutting ring ?
When the pump is in operation, the basic causes of wear resulted due to the following 3 actions on cutting rings and spectacle plate.

1. Friction created while rubbing away on wear parts.

2. Impact stress due to intentional back pressure created for better sealing.

3. By the concrete due to the flow. To reduce the maintenance cost, we suggest to use carbide type and change wear ring position after working for a period of time.

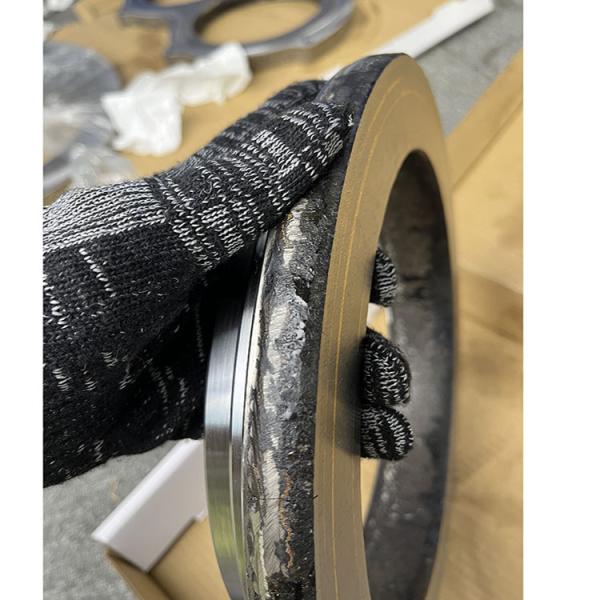

Cutting Rings

200/230/260

Cutting Ring

Single Alloy, Twin Alloy, Full Alloy
